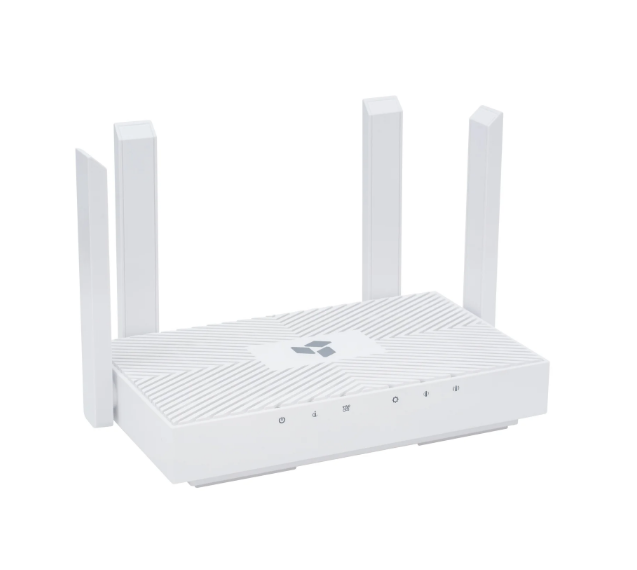

SNR SNR-CPE-AX2 1.0
Experimental Versions
None at this time.
Hardware Highlights
Installation
→ Install OpenWrt (generic explanation)
- Set a static ip on the ethernet interface of your PC. (ip address: 192.168.1.254, subnet mask:255.255.255.0) .
- Download the OpenWrt uboot image (openwrt-mediatek-filogic-snr_cpe-ax2-bl31-uboot.fip).
- SSH/SCP opened by default on the stock firmware (3.0.1). Username: Admin, default password: Admin. Check it on the bottom of the router.
- Copy uboot image using SCP (WinSCP) to /tmp dir on SNR-CPE-AX2.
- Download recovery file. (openwrt-mediatek-filogic-snr_snr-cpe-ax2-initramfs-recovery.itb)
- Copy the recovery image to a TFTP server reachable at 192.168.1.254/24.
- Open ssh shell to the SNR-CPE-AX2.
- Run commands:
mtd write \ /tmp/openwrt-mediatek-filogic-snr_snr-cpe-ax2-bl31-uboot.fip FIP reboot
Wait until recovery boot.
Open web http://192.168.1.1 and do sysupgrade by openwrt-mediatek-filogic-snr_cpe-ax2-squashfs-sysupgrade.itb
Upgrading OpenWrt
These are generic instructions. Update with your router's specifics.
LuCI Web Upgrade Process
- Browse to
http://192.168.1.1/cgi-bin/luci/mini/system/upgrade/LuCI Upgrade URL - Upload image file for sysupgrade to LuCI
- Wait for reboot
Terminal Upgrade Process
If you don't have a GUI (LuCI) available, you can alternatively upgrade via the command line. There are two command line methods for upgrading:
sysupgrademtd
Note: It is important that you put the firmware image into the ramdisk (/tmp) before you start flashing.
sysupgrade
- Login as root via SSH on 192.168.1.1, then enter the following commands:
cd /tmp wget http://downloads.openwrt.org/snapshots/trunk/XXX/xxx.abc sysupgrade /tmp/xxx.abc
mtd
If sysupgrade does not support this router, use mtd.
- Login as root via SSH on 192.168.1.1, then enter the following commands:
cd /tmp wget http://downloads.openwrt.org/snapshots/trunk/XXX/xxx.abc mtd write /tmp/xxx.abc linux && reboot
Network interfaces
The default network configuration is:
| Interface Name | Description | Default configuration |
|---|---|---|
| br-lan | LAN & WiFi | 192.168.1.1/24 |
| eth0 | WAN port | DHCP |
| eth1 | LAN ports (1 to 4) | None |
| phy0 | WiFi 2.4GHz | Disabled |
| phy1 | WiFi 5GHz | Disabled |
Switch Ports (for VLANs)
Ports 1-4 labeled on the unit, number 0 is the Internet (WAN) on the unit.
| Port | Switch port |
|---|---|
| LAN 1 | 1 |
| LAN 2 | 2 |
| LAN 3 | 3 |
| LAN 4 | 4 |
Buttons
→ hardware.button on howto use and configure the hardware button(s). Here, we merely name the buttons, so we can use them in the above Howto.
The SNR SNR-CPE-AX2 has the following buttons:
| BUTTON | Event |
|---|---|
| Reset | reset |
| Mesh | - |
Hardware
Info
filter : Brand=SNR filter : Model=SNR-CPE-AX2 filter : Versions=1.0
Photos
Bootlogs
OEM bootlog
COPY HERE THE BOOTLOG WITH THE ORIGINAL FIRMWARE
OpenWrt bootlog
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 6.12.55 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r31632-130306fab9) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Wed Oct 29 21:01:23 2025 [ 0.000000] Machine model: SNR SNR-CPE-AX2 [ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000 [ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000 [ 0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserved@47c80000 [ 0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000 [ 0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc0000 [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000040000000-0x000000004fffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff] [ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff] [ 0.000000] node 0: [mem 0x0000000043030000-0x0000000047c7ffff] [ 0.000000] node 0: [mem 0x0000000047c80000-0x0000000047ffffff] [ 0.000000] node 0: [mem 0x0000000048000000-0x000000004fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000004fffffff] [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.5 [ 0.000000] percpu: Embedded 20 pages/cpu s42584 r8192 d31144 u81920 [ 0.000000] pcpu-alloc: s42584 r8192 d31144 u81920 alloc=20*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration [ 0.000000] alternatives: applying boot alternatives [ 0.000000] Kernel command line: root=/dev/fit0 rootwait [ 0.000000] Dentry cache hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 5, 131072 bytes, linear) [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 65536 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 0MB [ 0.000000] software IO TLB: area num 2. [ 0.000000] software IO TLB: SWIOTLB bounce buffer size roundup to 0MB [ 0.000000] software IO TLB: mapped [mem 0x000000004fe49000-0x000000004fec9000] (0MB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 640 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] Root IRQ handler: gic_handle_irq [ 0.000000] GICv3: GICv3 features: 16 PPIs [ 0.000000] GICv3: GICD_CTRL.DS=0, SCR_EL3.FIQ=0 [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns [ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns [ 0.000084] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000) [ 0.000092] pid_max: default: 32768 minimum: 301 [ 0.003043] Mount-cache hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.003050] Mountpoint-cache hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.005153] cacheinfo: Unable to detect cache hierarchy for CPU 0 [ 0.005985] rcu: Hierarchical SRCU implementation. [ 0.005992] rcu: Max phase no-delay instances is 1000. [ 0.006191] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level [ 0.006421] smp: Bringing up secondary CPUs ... [ 0.006787] Detected VIPT I-cache on CPU1 [ 0.006833] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000 [ 0.006862] CPU1: Booted secondary processor 0x0000000001 [0x410fd034] [ 0.006946] smp: Brought up 1 node, 2 CPUs [ 0.006952] SMP: Total of 2 processors activated. [ 0.006955] CPU: All CPU(s) started at EL2 [ 0.006958] CPU features: detected: 32-bit EL0 Support [ 0.006961] CPU features: detected: CRC32 instructions [ 0.006989] alternatives: applying system-wide alternatives [ 0.007134] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching [ 0.007234] Memory: 236652K/262144K available (9472K kernel code, 980K rwdata, 2800K rodata, 448K init, 316K bss, 23860K reserved, 0K cma-reserved) [ 0.010407] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.010426] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.010484] 29232 pages in range for non-PLT usage [ 0.010487] 520752 pages in range for PLT usage [ 0.011967] pinctrl core: initialized pinctrl subsystem [ 0.014364] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.014713] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations [ 0.014739] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.014760] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.015153] thermal_sys: Registered thermal governor 'fair_share' [ 0.015158] thermal_sys: Registered thermal governor 'bang_bang' [ 0.015160] thermal_sys: Registered thermal governor 'step_wise' [ 0.015163] thermal_sys: Registered thermal governor 'user_space' [ 0.015224] ASID allocator initialised with 65536 entries [ 0.016107] pstore: Using crash dump compression: deflate [ 0.016111] pstore: Registered ramoops as persistent store backend [ 0.016114] ramoops: using 0x10000@0x42ff0000, ecc: 0 [ 0.017686] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000 [ 0.033955] cryptd: max_cpu_qlen set to 1000 [ 0.035382] SCSI subsystem initialized [ 0.035542] libata version 3.00 loaded. [ 0.037279] clocksource: Switched to clocksource arch_sys_counter [ 0.039456] NET: Registered PF_INET protocol family [ 0.039551] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.040875] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.040891] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.040900] TCP established hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.040920] TCP bind hash table entries: 2048 (order: 4, 65536 bytes, linear) [ 0.040970] TCP: Hash tables configured (established 2048 bind 2048) [ 0.041262] MPTCP token hash table entries: 256 (order: 0, 6144 bytes, linear) [ 0.041364] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.041380] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.041585] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.041608] PCI: CLS 0 bytes, default 64 [ 0.042850] workingset: timestamp_bits=46 max_order=16 bucket_order=0 [ 0.047985] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.047993] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.103816] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.114932] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled [ 0.118485] printk: legacy console [ttyS0] disabled [ 0.138859] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2 [ 0.138903] printk: legacy console [ttyS0] enabled [ 0.911551] random: crng init done [ 0.917838] loop: module loaded [ 0.924189] spi-nand spi0.0: calibration result: 0x3 [ 0.929631] spi-nand spi0.0: ESMT SPI NAND was found. [ 0.934680] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64 [ 0.943878] 5 fixed-partitions partitions found on MTD device spi0.0 [ 0.950539] Creating 5 MTD partitions on "spi0.0": [ 0.955328] 0x000000000000-0x000000100000 : "BL2" [ 0.960964] 0x000000100000-0x000000180000 : "u-boot-env (unused)" [ 0.967852] 0x000000180000-0x000000380000 : "Factory" [ 0.974583] 0x000000380000-0x000000580000 : "FIP" [ 0.980738] 0x000000580000-0x000008000000 : "ubi" [ 1.045057] ubi0: default fastmap pool size: 45 [ 1.049628] ubi0: default fastmap WL pool size: 22 [ 1.054411] ubi0: attaching mtd4 [ 1.504576] ubi0: scanning is finished [ 1.514580] ubi0: attached mtd4 (name "ubi", size 122 MiB) [ 1.520085] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 1.526948] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 1.533734] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 1.540691] ubi0: good PEBs: 980, bad PEBs: 0, corrupted PEBs: 0 [ 1.546686] ubi0: user volume: 8, internal volumes: 1, max. volumes count: 128 [ 1.553899] ubi0: max/mean erase counter: 35/22, WL threshold: 4096, image sequence number: 1085999389 [ 1.563200] ubi0: available PEBs: 0, total reserved PEBs: 980, PEBs reserved for bad PEB handling: 20 [ 1.572417] ubi0: background thread "ubi_bgt0d" started, PID 267 [ 1.579076] block ubiblock0_1: created from ubi0:1(fit) [ 1.724978] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc081a00000, irq 75 [ 1.734776] i2c_dev: i2c /dev entries driver [ 1.740781] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0) [ 1.749580] NET: Registered PF_INET6 protocol family [ 1.755297] Segment Routing with IPv6 [ 1.759005] In-situ OAM (IOAM) with IPv6 [ 1.762964] NET: Registered PF_PACKET protocol family [ 1.768061] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 1.781312] 8021q: 802.1Q VLAN Support v1.8 [ 1.804368] FIT: Detected U-Boot 2025.01-OpenWrt-r29464-0bc09b325d [ 1.810593] FIT: Selected configuration: "config-1" (OpenWrt snr_snr-cpe-ax2) [ 1.817751] FIT: kernel sub-image 0x00001000..0x005f67ff "kernel-1" (ARM64 OpenWrt Linux-6.12.55) [ 1.827592] FIT: flat_dt sub-image 0x005f7000..0x005fce4c "fdt-1" (ARM64 OpenWrt snr_snr-cpe-ax2 device tree blob) [ 1.838823] FIT: filesystem sub-image 0x005fd000..0x01107fff "rootfs-1" (ARM64 OpenWrt snr_snr-cpe-ax2 rootfs) [ 1.849869] block ubiblock0_1: mapped 1 uImage.FIT filesystem sub-image as /dev/fit0 [ 1.916151] mt7530-mdio mdio-bus:1f: configuring for fixed/2500base-x link mode [ 1.924898] mt7530-mdio mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx [ 1.934973] mt7530-mdio mdio-bus:1f wan (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7531 PHY] (irq=79) [ 1.956071] mt7530-mdio mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7531 PHY] (irq=80) [ 1.977013] mt7530-mdio mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7531 PHY] (irq=81) [ 1.997947] mt7530-mdio mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:03] driver [MediaTek MT7531 PHY] (irq=82) [ 2.018894] mt7530-mdio mdio-bus:1f lan4 (uninitialized): PHY [mt7530-0:04] driver [MediaTek MT7531 PHY] (irq=83) [ 2.030163] mtk_soc_eth 15100000.ethernet eth0: entered promiscuous mode [ 2.036898] DSA: tree 0 setup [ 2.040197] clk: Disabling unused clocks [ 2.044387] PM: genpd: Disabling unused power domains [ 2.053490] VFS: Mounted root (squashfs filesystem) readonly on device 259:0. [ 2.060829] Freeing unused kernel memory: 448K [ 2.065312] Run /sbin/init as init process [ 2.069424] with arguments: [ 2.072380] /sbin/init [ 2.075075] with environment: [ 2.078208] HOME=/ [ 2.080557] TERM=linux [ 2.276148] init: Console is alive [ 2.279722] init: - watchdog - [ 2.689642] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 2.737958] gpio_button_hotplug: loading out-of-tree module taints kernel. [ 2.747132] leds-gpio leds: Led red:status renamed to red:status_1 due to name collision [ 2.761963] leds-gpio leds: Led blue:status renamed to blue:status_1 due to name collision [ 2.771146] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 2.780657] init: - preinit - [ 3.149394] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode [ 3.157880] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx [ 3.202336] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode [ 7.387212] UBIFS (ubi0:4): Mounting in unauthenticated mode [ 7.393004] UBIFS (ubi0:4): background thread "ubifs_bgt0_4" started, PID 786 [ 7.418771] UBIFS (ubi0:4): recovery needed [ 7.527297] UBIFS (ubi0:4): recovery completed [ 7.531793] UBIFS (ubi0:4): UBIFS: mounted UBI device 0, volume 4, name "rootfs_data" [ 7.539629] UBIFS (ubi0:4): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.549535] UBIFS (ubi0:4): FS size: 82153472 bytes (78 MiB, 647 LEBs), max 658 LEBs, journal size 4063232 bytes (3 MiB, 32 LEBs) [ 7.561177] UBIFS (ubi0:4): reserved for root: 3880311 bytes (3789 KiB) [ 7.567785] UBIFS (ubi0:4): media format: w5/r0 (latest is w5/r0), UUID E6F11B88-3FFD-4DE6-AF44-EC61DF69A61F, small LPT model [ 7.583197] mount_root: switching to ubifs overlay [ 7.591571] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off. [ 7.606675] urandom-seed: Seeding with /etc/urandom.seed [ 7.669652] procd: - early - [ 7.672592] procd: - watchdog - [ 8.220002] procd: - watchdog - [ 8.224778] procd: - ubus - [ 8.302691] procd: - init - [ 8.697061] kmodloader: loading kernel modules from /etc/modules.d/* [ 8.754219] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0 [ 8.784272] Loading modules backported from Linux version v6.16-0-g038d61fd6422 [ 8.791621] Backport generated by backports.git v6.1.145-1-47-g6194bf852a3e [ 8.911709] urngd: v1.0.2 started. [ 9.117799] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20240823161240a [ 9.117799] [ 9.304386] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20240823161304 [ 9.400626] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20240823161841 [ 9.498292] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0' [ 9.608999] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1' [ 9.703561] PPP generic driver version 2.4.2 [ 9.708886] NET: Registered PF_PPPOX protocol family [ 9.718358] batman_adv: B.A.T.M.A.N. advanced 2025.4-openwrt-1 (compatibility version 15) loaded [ 9.732788] kmodloader: done loading kernel modules from /etc/modules.d/* [ 12.219033] mtk_soc_eth 15100000.ethernet eth0: Link is Down [ 12.237808] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode [ 12.246557] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx [ 12.263413] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode [ 12.275007] br-lan: port 1(lan1) entered blocking state [ 12.280319] br-lan: port 1(lan1) entered disabled state [ 12.285580] mt7530-mdio mdio-bus:1f lan1: entered allmulticast mode [ 12.291917] mtk_soc_eth 15100000.ethernet eth0: entered allmulticast mode [ 12.302186] mt7530-mdio mdio-bus:1f lan1: entered promiscuous mode [ 12.319665] mt7530-mdio mdio-bus:1f lan2: configuring for phy/gmii link mode [ 12.331297] br-lan: port 2(lan2) entered blocking state [ 12.336533] br-lan: port 2(lan2) entered disabled state [ 12.341849] mt7530-mdio mdio-bus:1f lan2: entered allmulticast mode [ 12.359206] mt7530-mdio mdio-bus:1f lan2: entered promiscuous mode [ 12.375713] mt7530-mdio mdio-bus:1f lan3: configuring for phy/gmii link mode [ 12.398796] br-lan: port 3(lan3) entered blocking state [ 12.404034] br-lan: port 3(lan3) entered disabled state [ 12.409359] mt7530-mdio mdio-bus:1f lan3: entered allmulticast mode [ 12.418666] mt7530-mdio mdio-bus:1f lan3: entered promiscuous mode [ 12.436317] mt7530-mdio mdio-bus:1f lan4: configuring for phy/gmii link mode [ 12.447490] br-lan: port 4(lan4) entered blocking state [ 12.452721] br-lan: port 4(lan4) entered disabled state [ 12.457984] mt7530-mdio mdio-bus:1f lan4: entered allmulticast mode [ 12.469375] mt7530-mdio mdio-bus:1f lan4: entered promiscuous mode [ 12.502331] mt7530-mdio mdio-bus:1f wan: configuring for phy/gmii link mode [ 12.589019] 8021q: adding VLAN 0 to HW filter on device bat0
Notes
Space for additional notes, links to forum threads or other resources.
- ...
